LANCIA AURELIA (requires VW type Split Pulley).

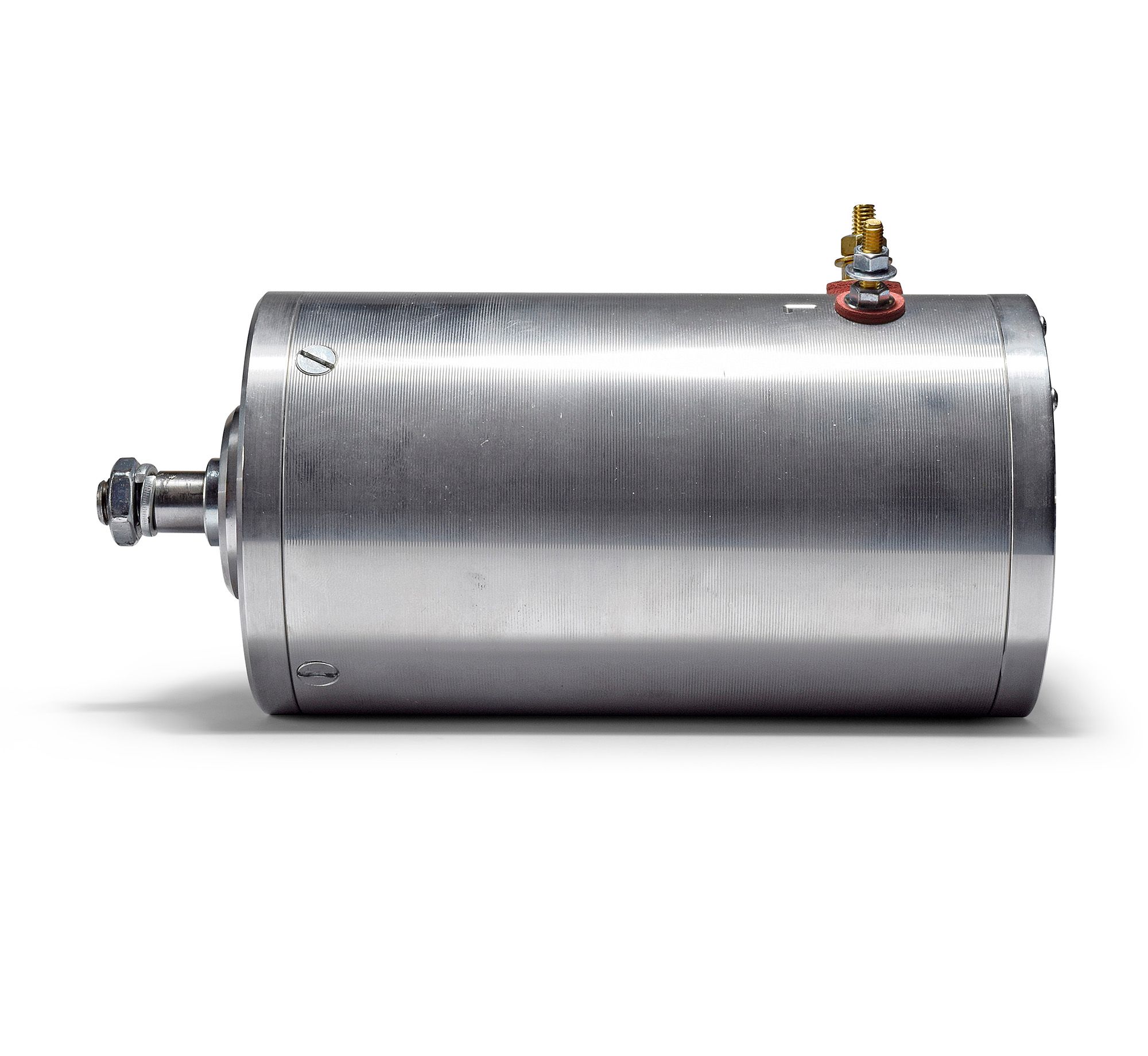

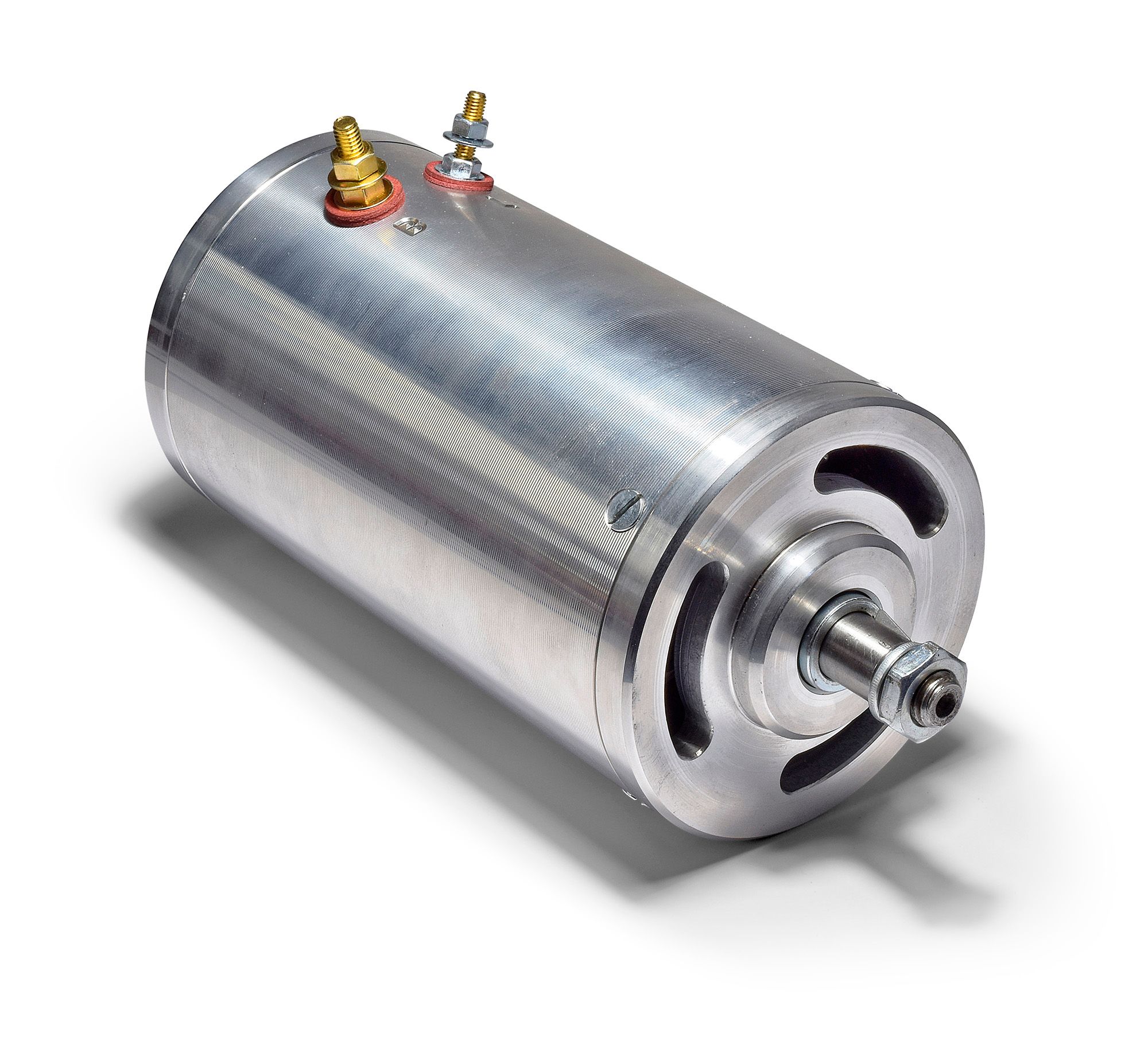

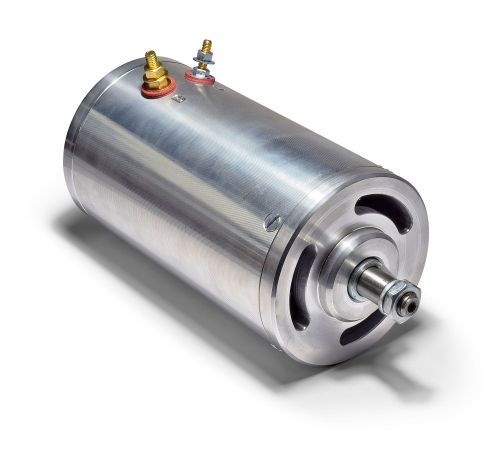

The new RAC011 unit has a concentric pulley design, fits in block housing the same, and uses a split VW fan belt pulley
Shims are then used opening and closing the pulley vee to attain the correct belt tension.
(NEGATIVE EARTH)
It fits all models using essentric pulley-based dynamo in block
| FITS |
|---|
| Make | Model | Engine size | Year |
|---|
| Lancia | Auralia Engine Type 6 | | |
| | B10 | 1.8 | |
| | B15,B20,B21,B22 | 2.0 | 1950 - 1958 |
| | B12 | 2.3 | |
| | B20,B24 | 2.5 | |
| SPECIFICATION |
|---|
| Amps | 40 A |
|---|
| Bracket distance | |
|---|
| OEM | Magneti Marelli |
|---|
| Polarity | Negative Earth |
|---|
| Shaft diameter | 15 mm |
|---|
| Voltage | 12 V |
|---|
| Weight | 3.50 kg |
|---|
